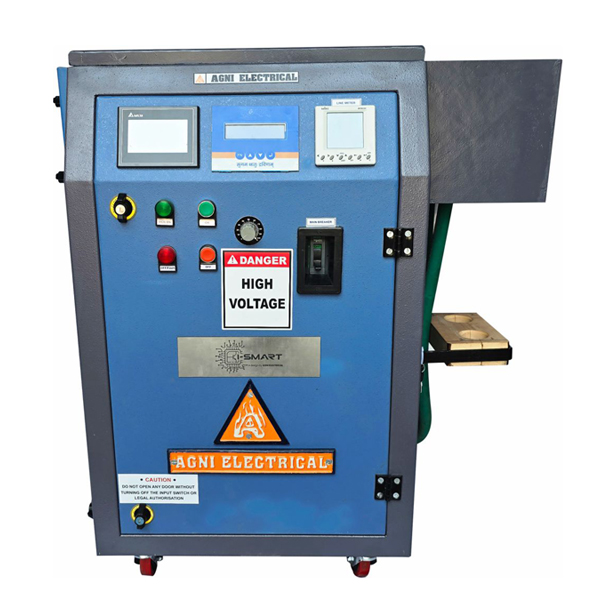

15 / 30 kW Melting unit with 5-20 Kg metal melting capacity (Depends on metals)
≤ 9-10 KHZ as per design requirement (High frequency melting unit)
Input Power Supply: 415V ± 5% , 3 Phase, 50/60 Hz
Most advance IGBT based inverter with microcontroller and LCD display for machine interface with machine ON, OFF
push button and power control Power Pot.
Chiller / Cooling Tower required at optional base depend on Usage.
FEATURES :
Total digital and most advance technology for micro-controlling circuits with all converter SCRs/Diodes and Inverter
IGBTs Safety and tripping circuits which have water Pressure / flow tripping and Temperature tripping sensors : Easy
Diagnostic and Fast Trouble Shooting with quick response Control system
0.98 and above Power factor
Operate with time reference / Operate with temp reference (Temperature sensor doesn’t give accurate temp. rating
this only for reference)
Easy to operate and Low maintenance design
Clean and Silent operation unit with Minimum metal loss
Secondary-isolation series tank power circuit protection
Integral crucibles Pull out or Push out furnace system [Tilting furnace system on optional bases{Manual, Hydraulic and
Electrical remote}]
Silicon Carbide, Silicon Graphite, Clay Graphite and Pure Graphite crucibles : any one can use
Very compact modular unit design
Alloy and Metal capacity flexibility
Touch Screen interface available at optional bases
APPLICATION :
In Refineries of Precious Metals: Melting likes Gold, Silver, Platinum etc.
Ferrous and Non Ferrous Metals Alloys making for R&D or Small Lab Testing Furnace for taking result of alloy metals likes
Coppers and copper based alloys , Cast Iron and Steel Alloys or ETC.
Specially design for Metal Powder and low dense materials (Smelting)
